Gargo Cone Dyeing Machine

We are engaged in manufacturing & supplying of HTHP Automatic Yarn Cone Dyeing Machines Ranging from 15kg to 1000 kg. It is used for dyeing yarn at high temperature and high pressure. Our expert technicians ensure that it is manufactured using fine grade material, procured from the most authentic vendors of the industry. The body of the machine is fabricated using high grade stainless steel in order to assure durability and resistance to corrosion. We fabricate these machines using premium quality raw material that is procured from the most credible vendors of the industry.

Application:

  • Yarn Packages
  • Zipper Tapes
  • Small width Fabrics
  • Warp Beams
  • Loose fibers

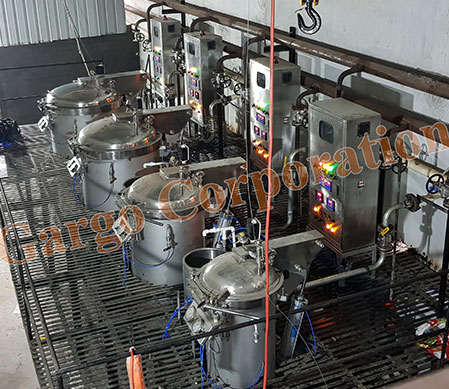

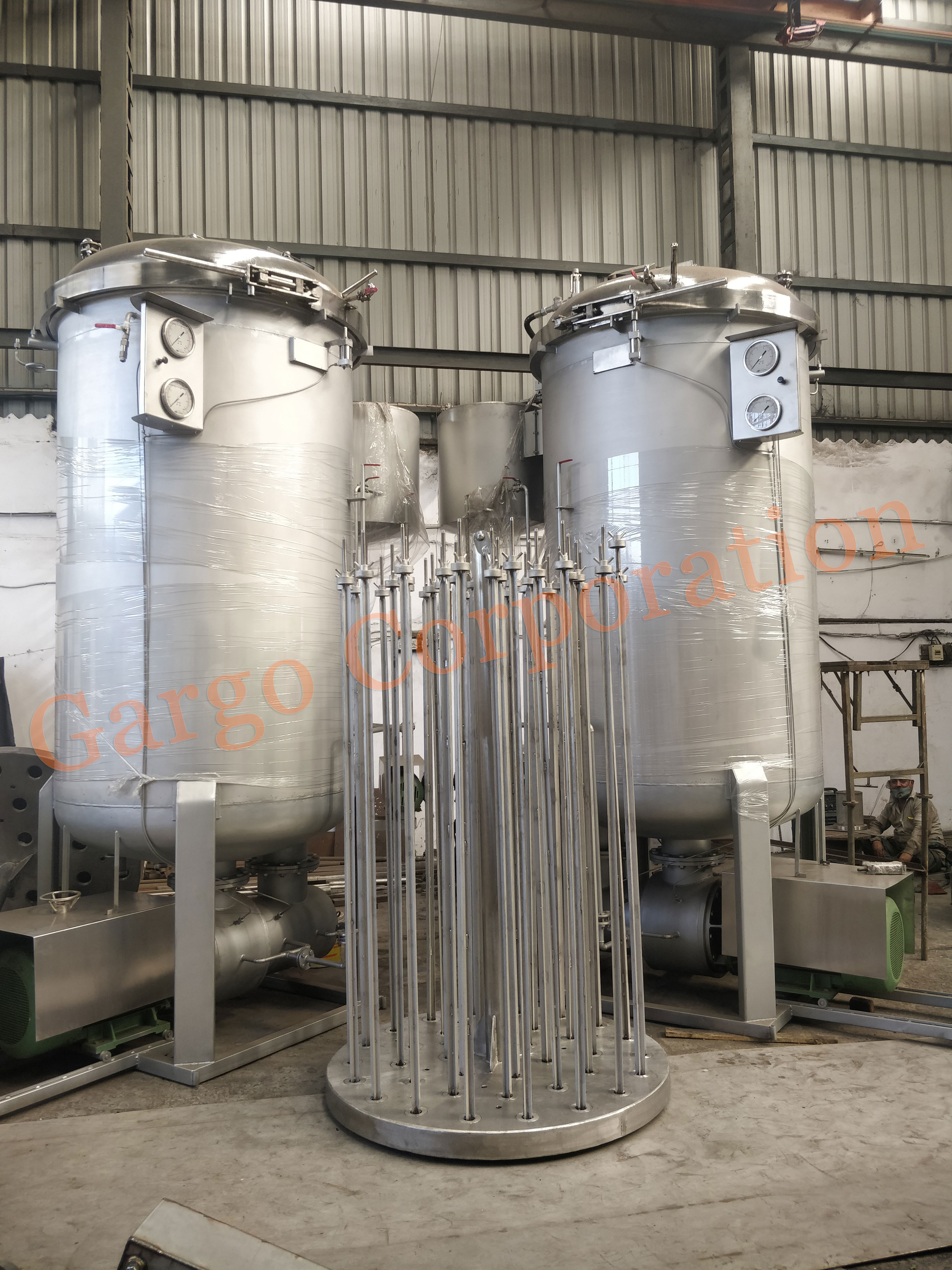

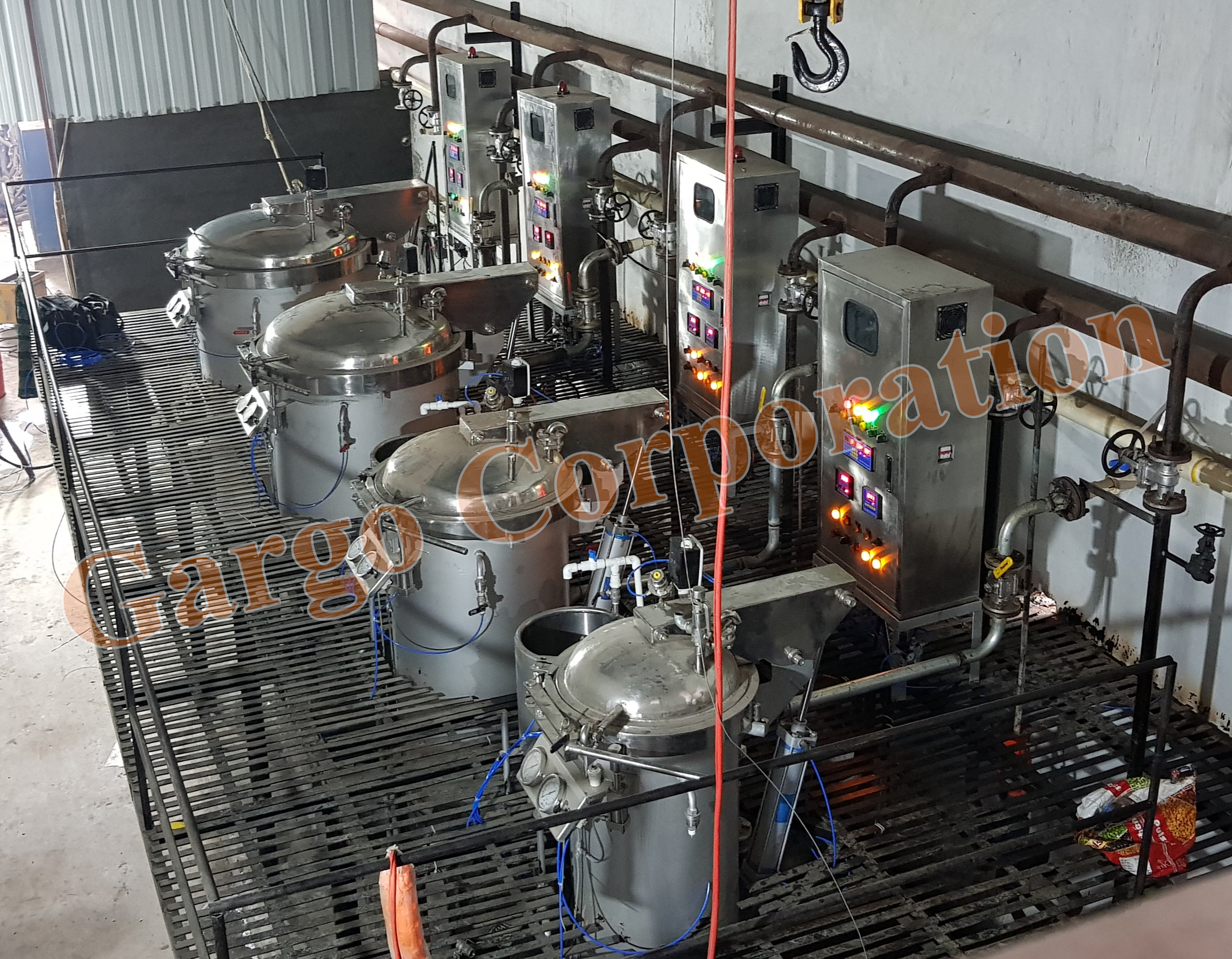

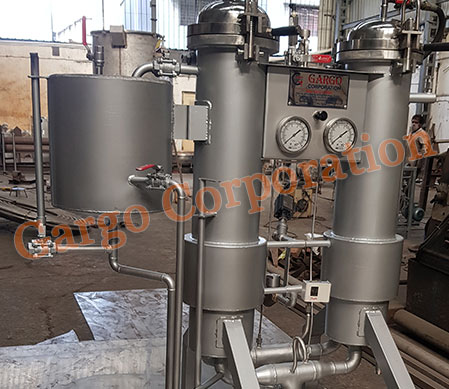

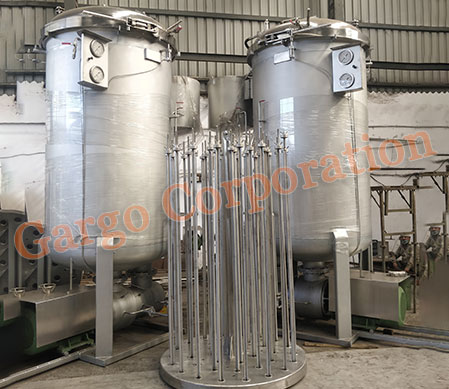

Cone Dyeing Machine

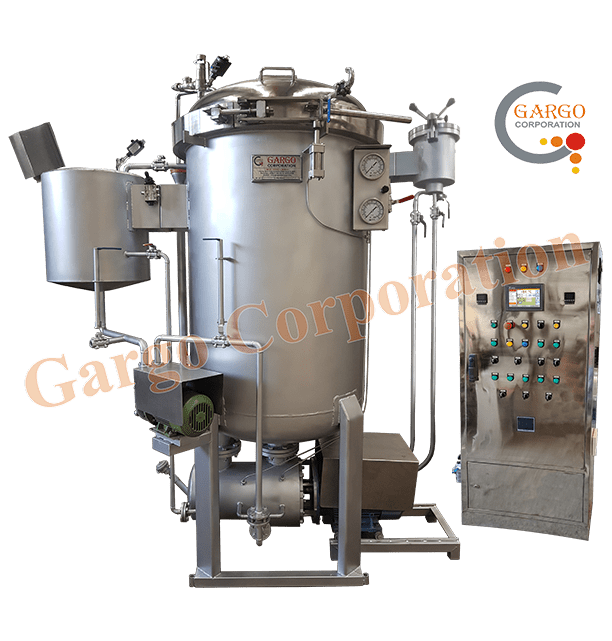

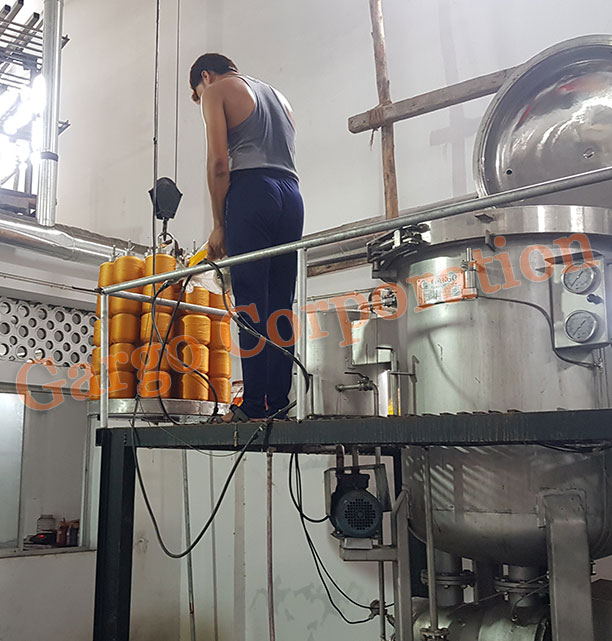

Cone Dyeing Machine

Main Features:

  • Capacity from 15kg to 1000 kg
  • Very low liquor ratio from 1:4 to 1:6
  • Loading up to 50% possible
  • Turbo- Axial main pump (Direct drive -motor mounted)
  • Variable Frequency Inverter Drive For main pump
  • Coil type heat exchanger for efficient and fast heat transfer
  • Design ensures complete drain of liquor
  • Pneumatic cylinder lift door with Heavy Clamp locking system
  • Hydraulic safety locking for door
  • SS lever operated spring safety valve
  • Electronic pressure switch for over pressure release.
  • Pump dry run sensor.
  • Water level sensor cut-off.
  • High temp. Drain.
  • Differential Pressure Guage
  • Wo. temp up to 1400C
  • Wo. Pr. Up to 5 kg/cm2 (vessel tested pressure 7 kg/cm2)
  • Large Saving of capital and operational cost

Technical Specification

Model GYD15 GYD30 GYD50 GYD100 GYD200 GYD300 GYD500 GYD600 GYD800 GYD1000
No.of Packages( Plastic tube of 170mm)* 10 20 35 70-84 144 216 360 432 576 720
No.of Packages( SS Spring of 170mm) 14 28 49 98-112 198 288 504 576 816 1020
Total capacity by wt. Approx* 12-15 Kgs 30 kg 50 kg 100 kg 200 kg 300 kg 500 kg 600 kg 800 kg 1000 kg
No. Of Poles 2 4 7 14 18 24 36 36 48 60
Main Pump Drive (HP) 5HP 5HP 10HP 15HP 20HP 25HP 40HP 50HP 75HP 100HP
Max. Temperature (00C) 140 140 140 140 140 140 140 140 140
Max Working Pressure (Kg/Cm2) 4 4 4 4 4 4 4 4 4 4
Water Ratio 1:3 1:6 1:6 1:5-1:6 1:4-1:5 1:4-1:5 1:4-1:5 1:4-1:5 1:4-1:5 1:4-1:5
Injection pump (HP) 1 1 1 2 2 2 2 2 2 2
Specifications are subjected to change without prior notice.
* considered polyester yarn 1.4 kg per package on Plastic tube of 170mm x 200mm pitch.
