Gargo Winch Dyeing Machine

CHARACTERISTICS

Suitable for pre-treatment and after treatment of knit and woven materials such as dyeing, bleaching, scouring and washing under atmospheric condition. Made of high quality stainless steel for long service time.

Made of high quality stainless steel for long service time.

Gentle treatment ensures no damage or pilling on the materials.

High efficient driving system. Optional inverter control can be equipped for different materials and loading.

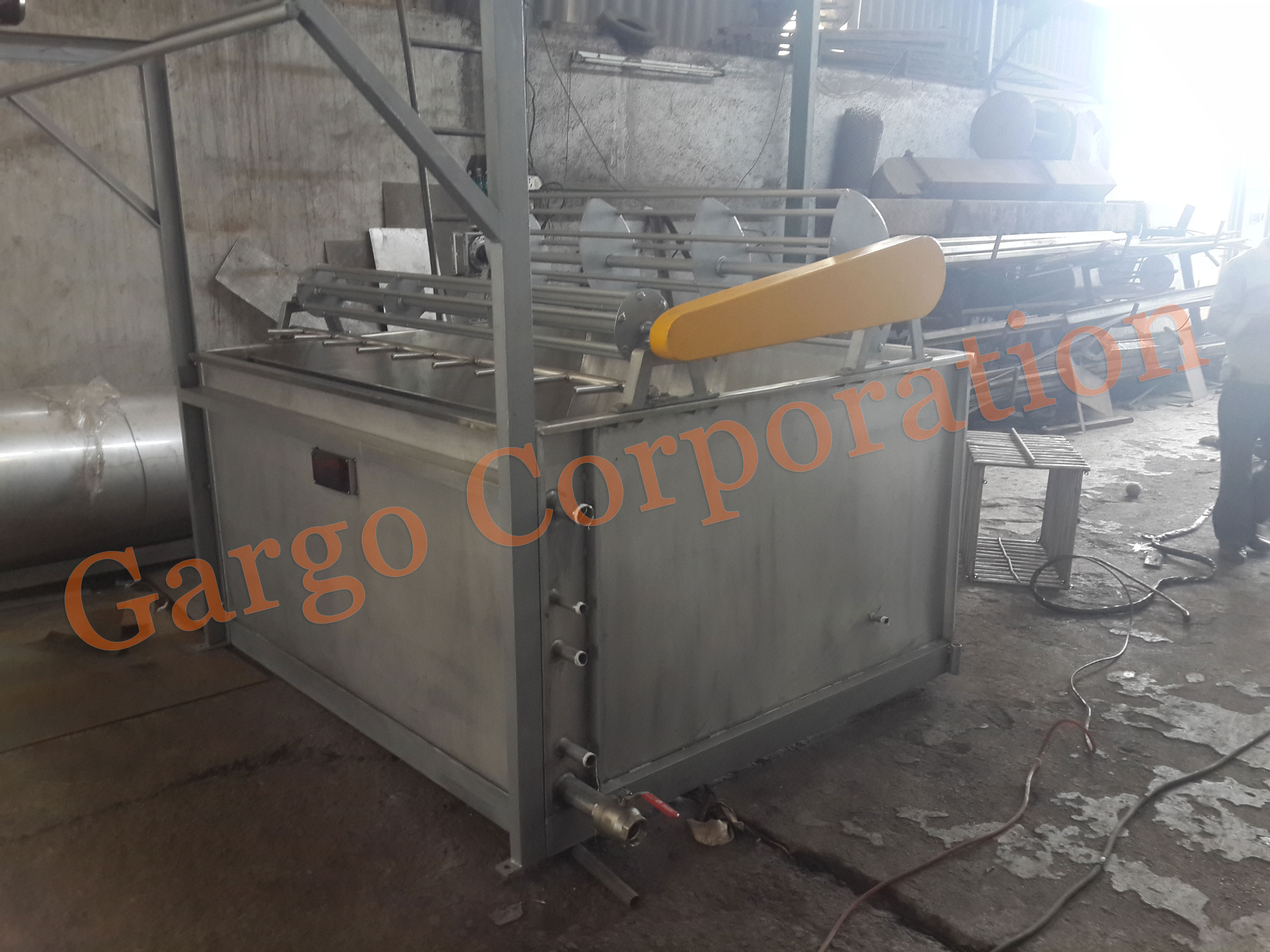

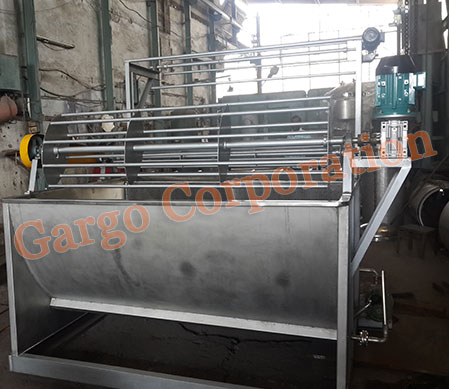

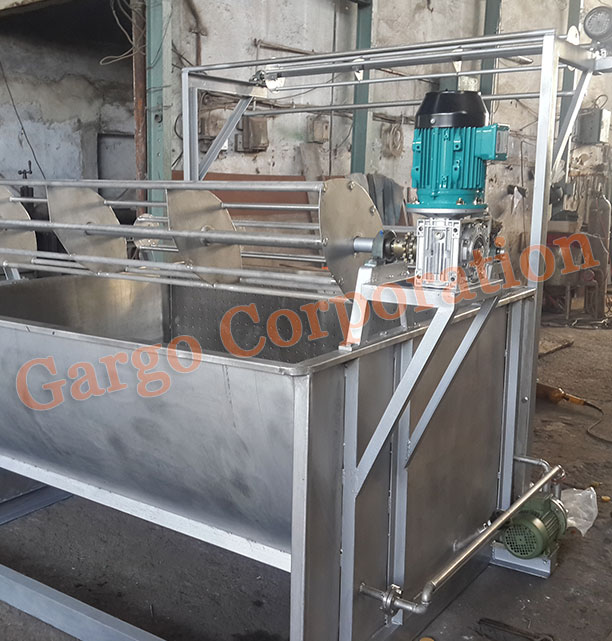

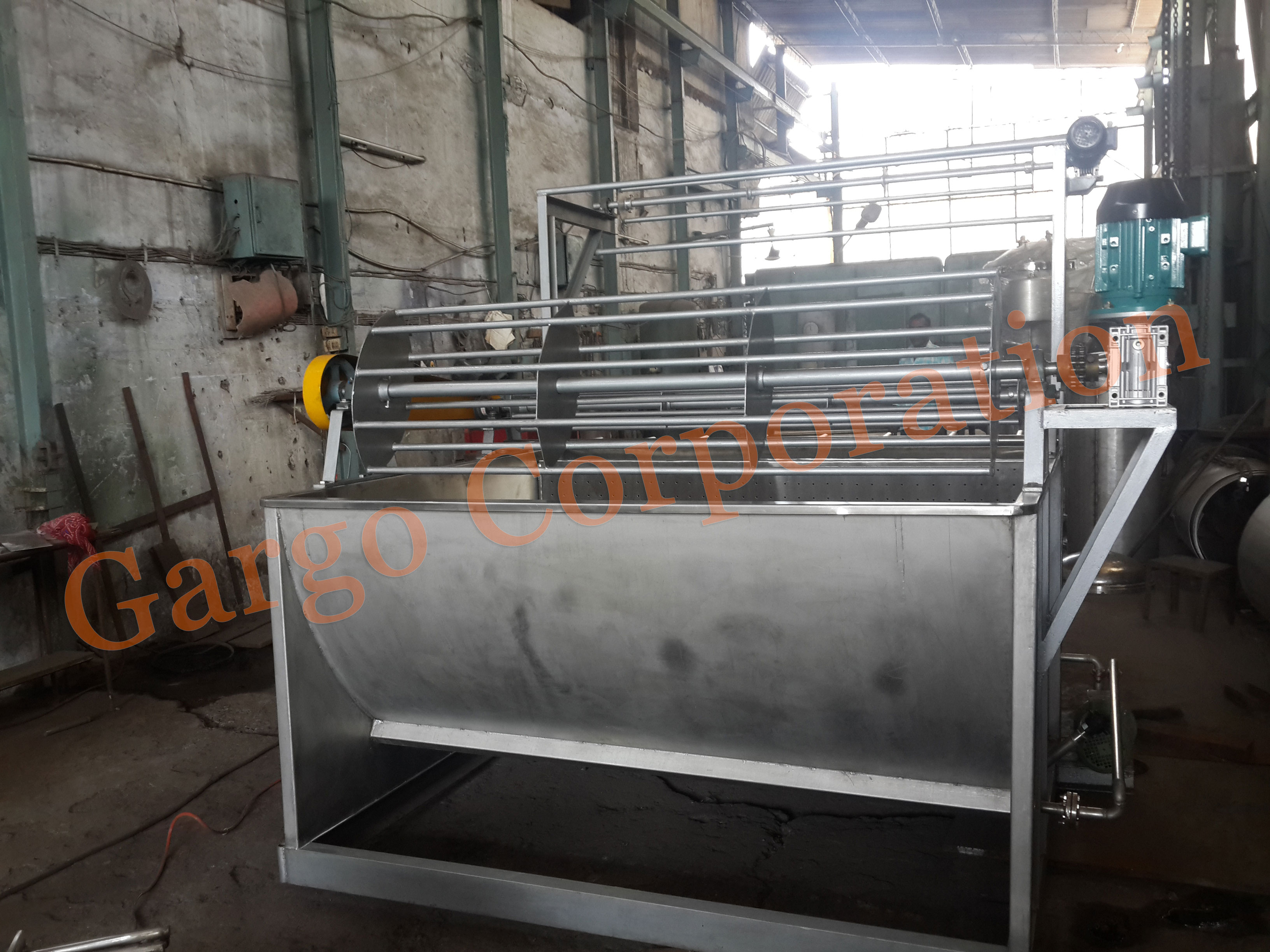

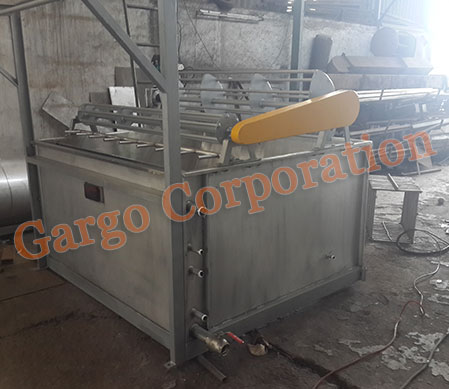

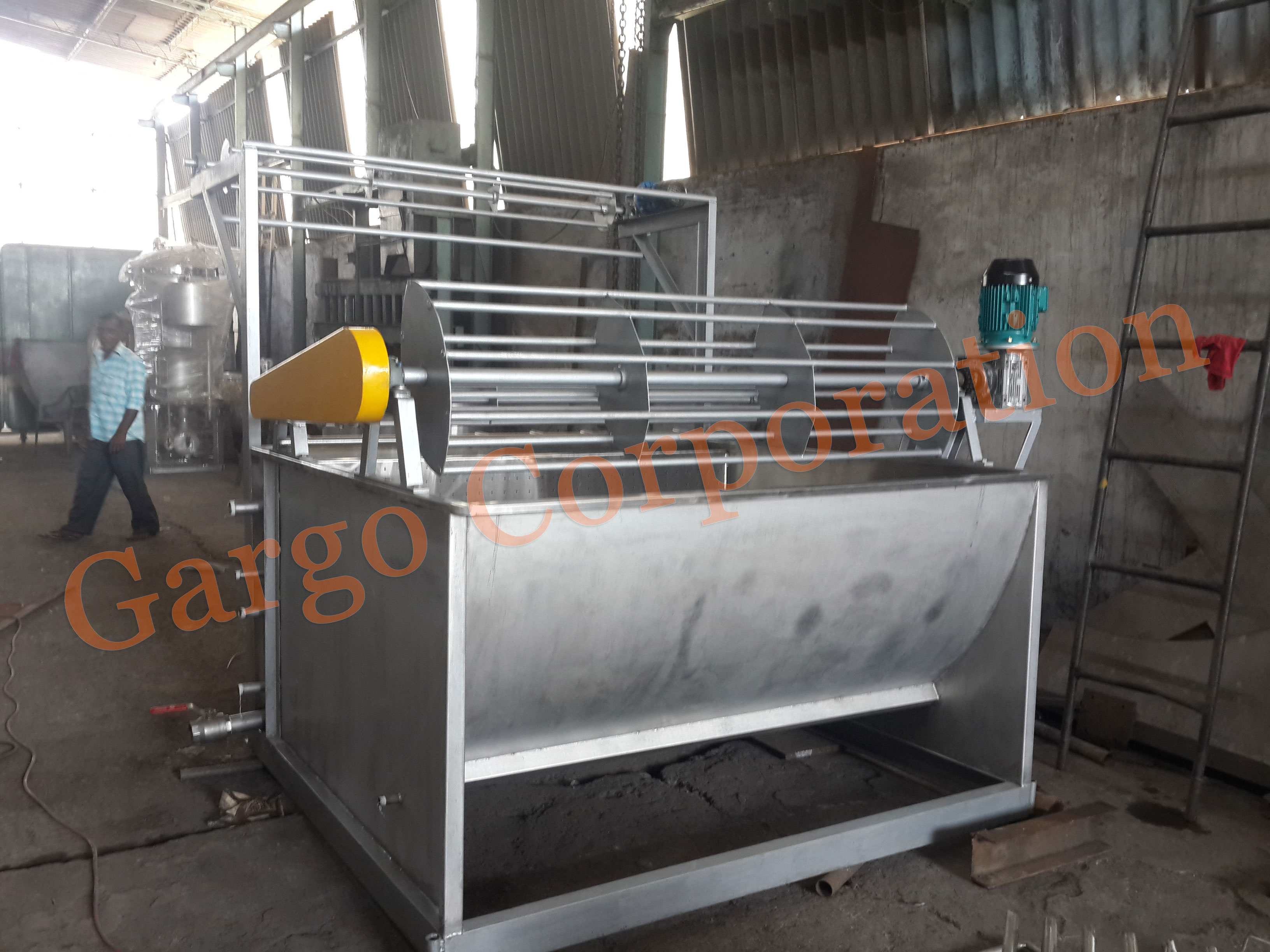

Winch Dyeing Machine

Technical Specification

Cotton Capacity Water Required Front Length (Width) Back To Front (Length) Height Main Reel Motor Optional Inject Pump
(kg.) (lts.) (mm) (mm) (mm) (hp) (hp)
25 375 1371 1320 900 1 0.5
50 750 1828 1930 900 1.5 0.5
100 1500 2438 1930 900 2 0.5
200 3000 3048 2235 925 2 2.5
300 4500 3657 2235 925 3 0.5
400 6000 4267 2540 925 5 0.5
500 7500 4876 2540 925 7.5 0.5
600 9000 5486 2540 925 7.5 0.5
